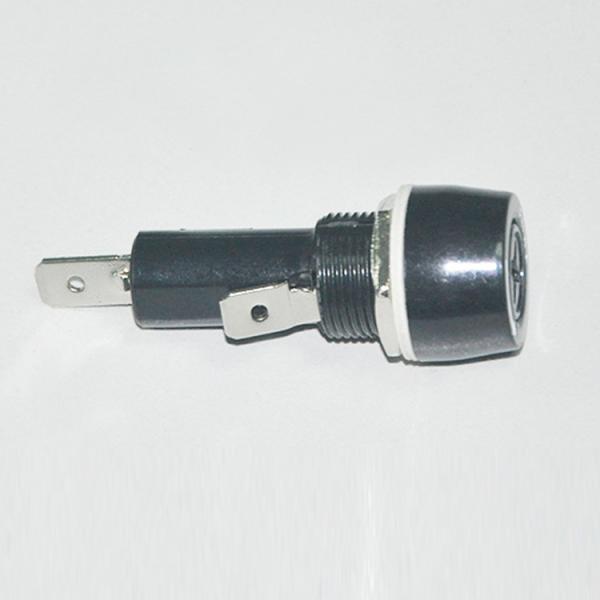

H3-53 R3-53 6.3x32mm Panel Mount Fuse Holder 15A 250V

Name: H353 R353 63x32mm Panel Mount Fuse Holder 15A 250V
Brand: Tian Rui
Price: 1 USD

China H3-53 R3-53 6.3x32mm Panel Mount Fuse Holder 15A 250V wholesale

Brand Name : Tian Rui

Model Number : H3-53 R3-53

Certification : ROHS

Place of Origin : China

MOQ : 100PCS

Price : Negotiable

Payment Terms : D/P, T/T,Paypal, Western Union

Supply Ability : 1000000PCS/Month

Delivery Time : 5-7 Days

Packaging Details : 1000PCS/Bag

Rated Current : 15A

Rated Voltage : 250V

Fuse Size : 6x30mm 6.3x32mm

Material : Bakelite

Terminal : Nickel plated copper

Mounting : Mounted by nut

Application : Healthcare, smart home

D.S. : AC 5000V Min

Contact Resistance : ≤ 20MΩ

Insulation Resistance : ≥500MΩ

Contact Now

H3-53 R3-53 6.3x32mm Panel Mount Fuse Holder 15A 250V

Paremeters of R3-14A2 6x30mm Panel Mount Fuse Holder

H3-53 Panel Mount Fuse Holder

15A 250V

For 6.3x32mm Tube Fuse

ROHS UL Certification

Material
Frame and cap	phenolic(UL flame: 94V-1)
Terminal	nickel plated copper
Mounted by nut

Product Name	Panel Mount Fuse Holder
Model Number	H3-53
Fuse Size	For 3AG 6x30mm 6.35x31.8mm Fuse
Mounting Way	Screw Mount
Cap	Slotted Driver Type Screw Cap
Certificate	ROHS UL
Opening	15mm
Operating Temperature	-10°C~+70°C
D.S. Strength	AC 5000V Min
Relative Humidity	95%, 40°C
Contact Resistance	≤ 20MΩ
Insulation Resistance	≥500MΩ
Withstand Voltage	3000V(50HZ)/min

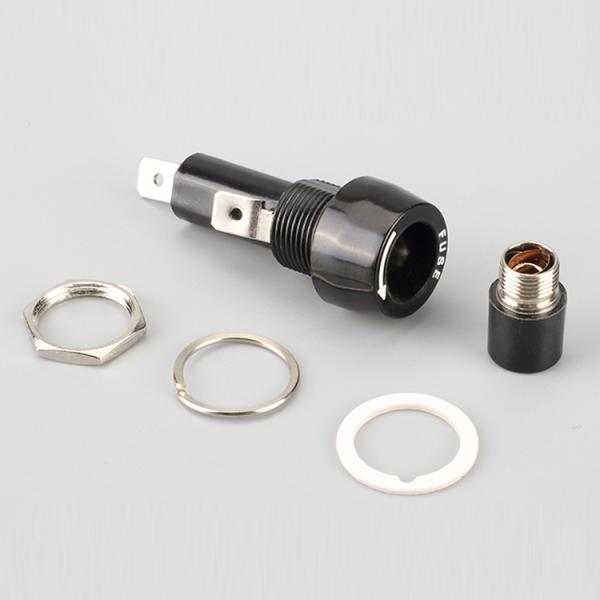

Features

●Frame&Cap: Phenolic

●Mounted by nut.

●Metal or plastic nut is optional.

Application

high quality fuse holder and fuse can protects a circuit from overloading in extreme operating conditions or in the event of a short circuit, keep your car and electric device in safe condition.

H3-53 R3-53 6.3x32mm Panel Mount Fuse Holder 15A 250V
